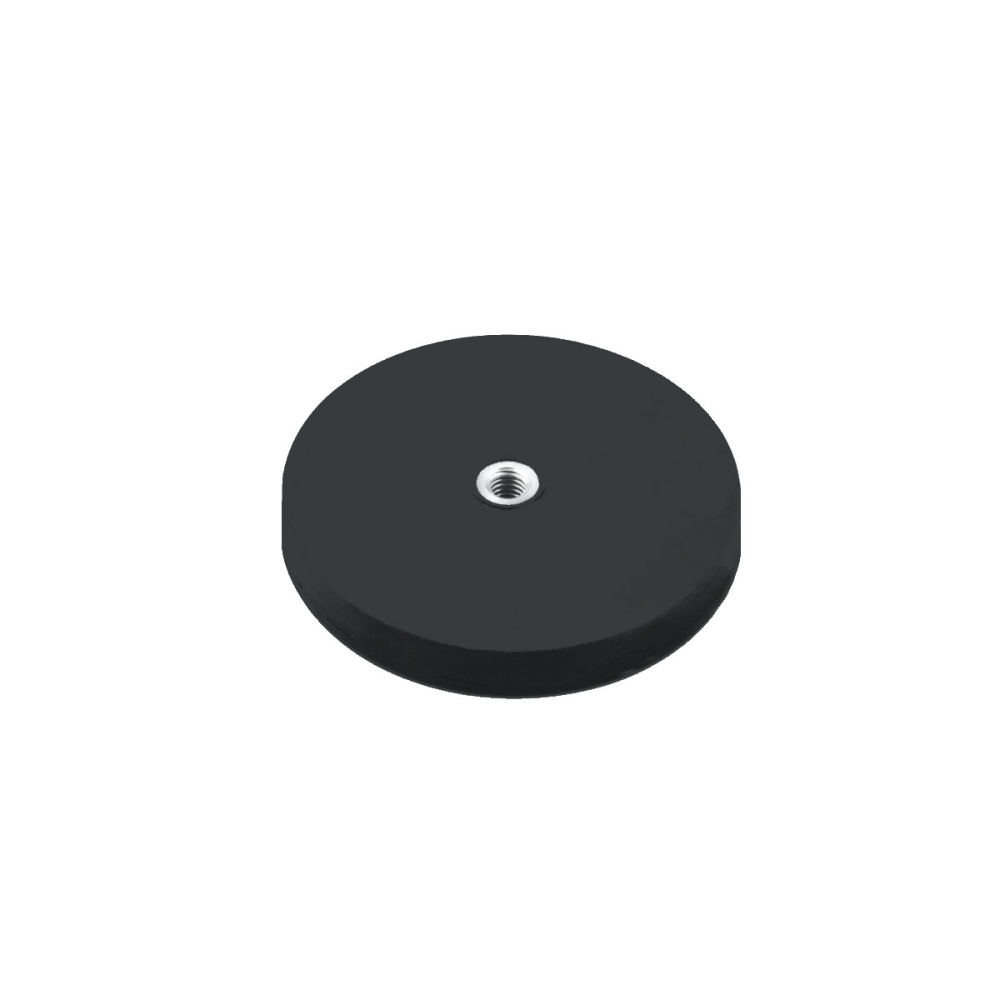

Rubber magnet w. internal thread, Ø66 mm.

Very strong neodymium & steel pot magnet with a black rubber coating and internal thread (M6).

Diameter: 6.6 cm.
Height: 0.85 cm.
Thread: M6
Strength: approx. 25 kg.

This type of magnet is classified as a strong neodymium pot magnet with a white rubber coating and M4 internal threads.

They can be used with external threaded magnets or with M6 screws, and the thread for this magnet is continuous, so you can drive a screw all the way through the rubber coating onto the other side if necessary.

These rubber magnets are sold individually. We also offer bulk purchasing and discounts for larger bulk packages, browse on the right for pricing options.

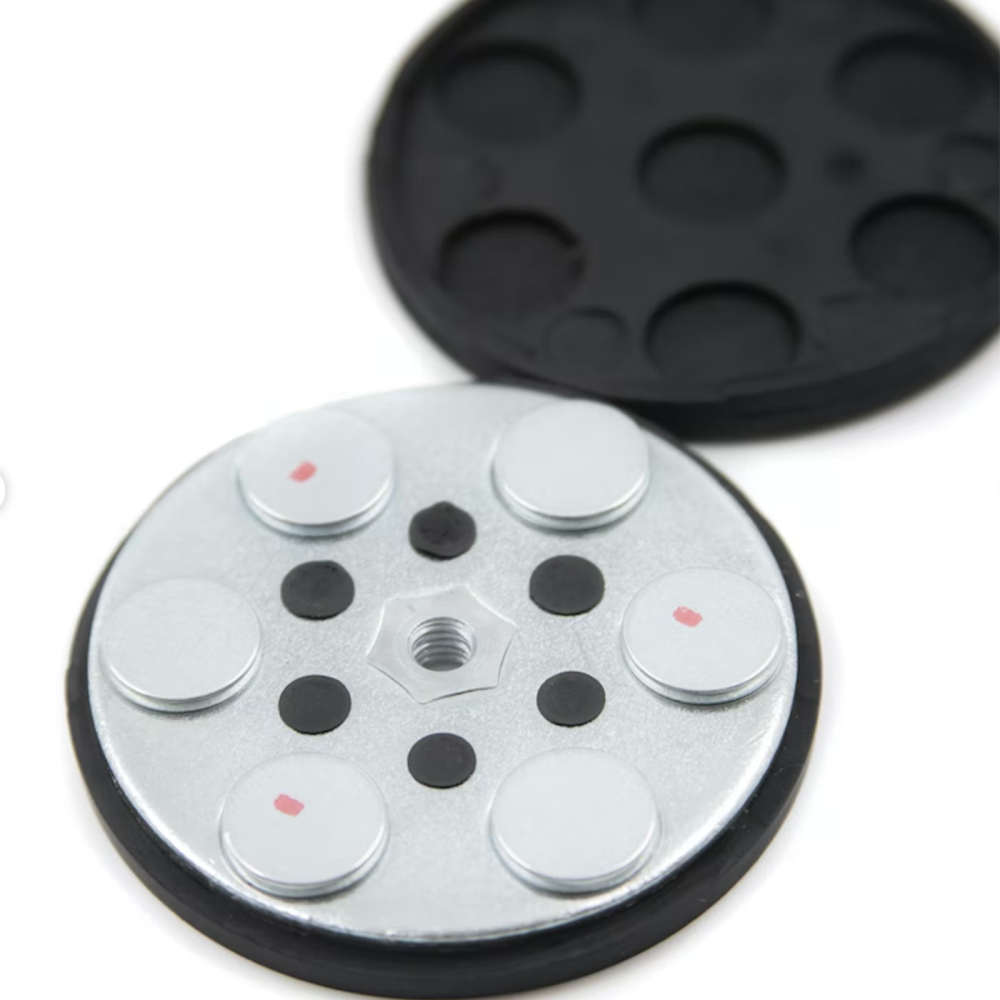

Each magnet consists of six (6) smaller magnets, which alternate the N and S poles outwards to ensure full contact. This means that you can easily place 2 of these magnets opposite each other as counterparts. Placing them opposite one another they will bond to each other.

The bearing capacity for this type of magnet is measured directly on a strong, magnetic steel plate made of pure steel. The further the rubber magnet is placed from the magnetic surface, the more the carrying capacity weakens.

To achieve the strongest pull, place this type of magnet on a horizonal surface. But keep in mind, this type of magnet will not slide as freely as magnets without a rubber coating.

This type of magnet can be used outdoors, but the steel thread may rust over time with permanent outdoor use, as it is not made of stainless steel. We suggest considering thread protective products if you intend to place this type of magnet outdoors permanently.

SPECIFICATIONS
Strength: approx. 25,000 g.
Magnetism: N38
Material: NdFeB
Steel thread: Q235
Coating: Rubber (black)
Temperature max.: 80°C
Magnet type: Neodymium
