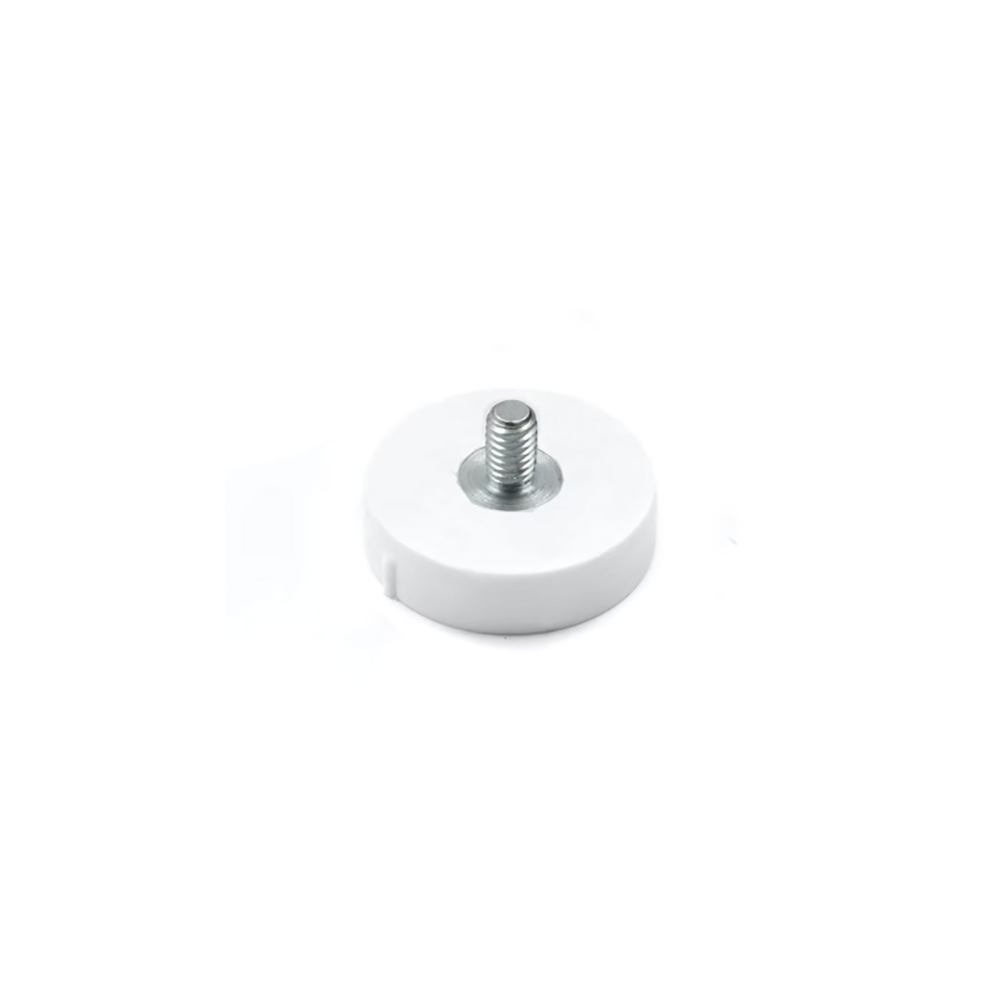

Rubber magnet (white) with external thread, Ø22 mm.
Details
Rubber magnet (white) with external thread, Ø22 mm.
Description
Description
Small but strong neodymium magnet with white rubber coating and external steel thread (M4).
The magnet itself is made of neodymium N42.
Diameter: 2.2 cm.
Height magnet: 0.6 cm.
Total height: 1.25 cm.
Thread size: M4
Strength: approx. 5.9 kg.
You can screw the magnet together with magnet types with internal M4 thread, or you can use an M4 nut.
Can be used on glass boards.
< p>We sell the magnets individually, so you can choose exactly the number of magnets you need.NOTE! The magnets have unidirectional poles - i.e. 2 threaded magnets cannot catch each other directly from the same surface, as they repel each other. Is good to use with metal as a counter pole instead.
The carrying capacity of the 5.9 kg. is measured directly on a strong, magnetic steel plate made of pure steel. Distance between magnet and magnetic counterpart (magnet or magnetic surface) weakens the carrying capacity. A distance of 2 mm. weakens the bearing capacity by approx. 70%, while a distance of 5 mm. weakens the carrying capacity by as much as 92%.
This type of magnet can be used outdoors, but the steel thread can rust over time with permanent outdoor use.
SPECIFICATIONS:
Strength: approx. 5,900 g.
Magnetism: N42
Material: NdFeB
Steel thread: Q235
Surface: Rubber
Magnet type: Neodymium
The rubber magnet withstands fine wind and weather, which is why it is ideal to use this magnet outdoors. However, you should know that the external thread is not made of stainless steel, which is why it can rust over time if it is not wrapped.
