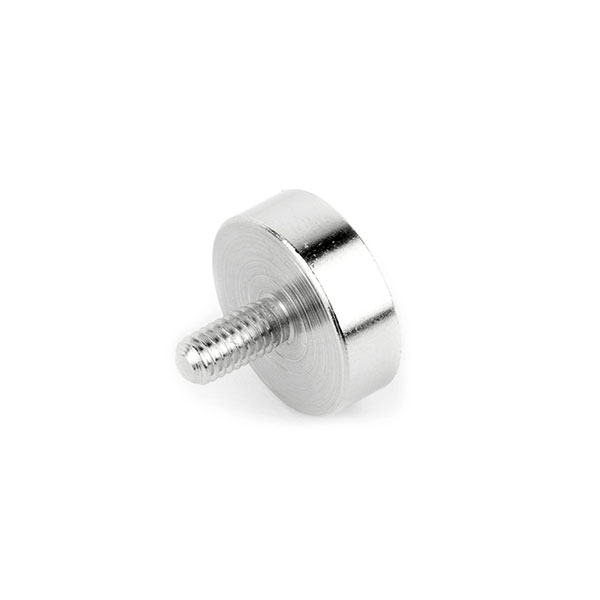

Pot magnet with external thread, Ø60 mm.

Insanely strong pot magnet - 130 kg. bearing capacity.

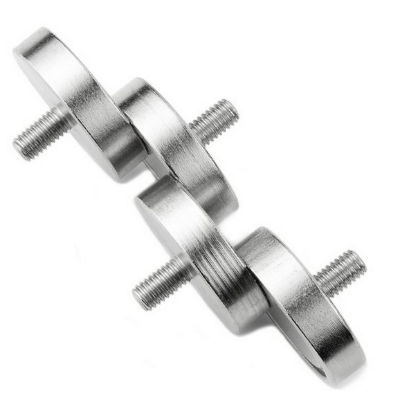

2 pot magnets with external thread cannot be used opposite each other, as the poles face the same direction - they will therefore only be able to sit together away from the center towards each other.

The pot magnet is made with a strong neodymium magnet in a steel capsule, which strengthens the magnetism. The thread works like a screw, so you can screw the magnet into an internal thread or with a nut.

The strength of 130 kg. is measured in direct tension on pure magnetic steel.

SPECIFICATIONS:
Strength: approx. 130,000 g.
Diameter: 60 mm.
Pot height: 15 mm.
Total height: 30 mm.
Magnetism: N42
Surface: nickel plated (Ni)
Thread thickness: M8< Max. temperature: 80°C

We do not recommend using pot magnets on magnetic glass boards, as the pot is made of steel and can scratch the glass.

spaces, the magnetic strength decreases. Is there e.g. gap of 2 mm. between this magnet and another magnet or a magnetic surface, the strength is reduced by 70%. Feel free to contact us for a calculation for your project.

NOTE! Our pot magnets are not made of stainless steel, which is why we do not recommend them for outdoor use or in damp environments.
