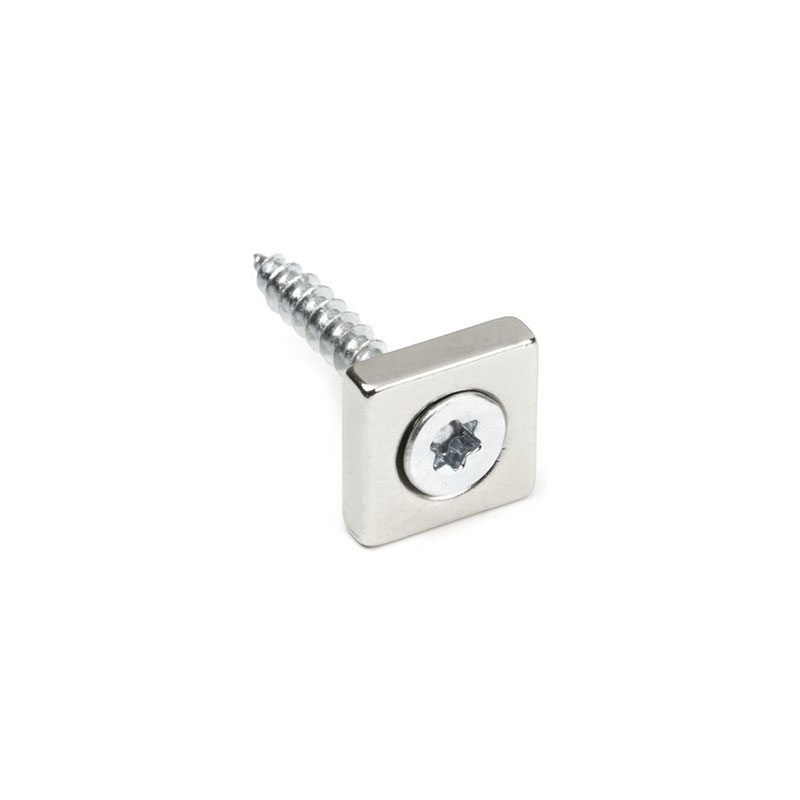

Countersunk power magnet 12x12x4 mm.

Submerged magnets | Countersunk neodymium magnet

Size: 1.2 x 1.2 cm.
Height: 0.4 cm.
Screw hole: ø 4.5 mm.
Load capacity: approx. 3 kg.

Square power magnet with recessed hole. Can be screwed onto anything to be made magnetic with a countersunk screw.

Be aware that the magnets are very strong and are not protected by a pot. They must therefore be handled carefully so that they do not break, as the only protection is the nickel coating. You must therefore not overtighten the screw, but only screw it in until the flat, recessed screw head aligns with the surface of the magnet.

Load capacity is measured in direct pull on a strong, magnetic steel plate. The carrying capacity weakens the further the magnet is from its magnetic counterpart. Normally we make our magnets with a density of N45 or higher, but because they become extra brittle in this small size with a screw hole in the center of 3 mm., we have had to choose a smaller density of N35. However, you still get a very strong magnet.

We only recommend these magnets for indoor use. With constant contact with wind and weather, they rust over time.

SPECIFICATIONS
Strength: approx. 3,000 g.
Magnetism: N35
Surface: nickel-plated (Ni)

NOTE! You cannot use 2 of these magnets opposite each other, as the poles are facing the same way on all magnets, and they will therefore repel each other. Therefore, choose a similar size to the counterpart - i.e. a magnet or a metal disc with the same size on the faces - i.e. 12x12 mm.
