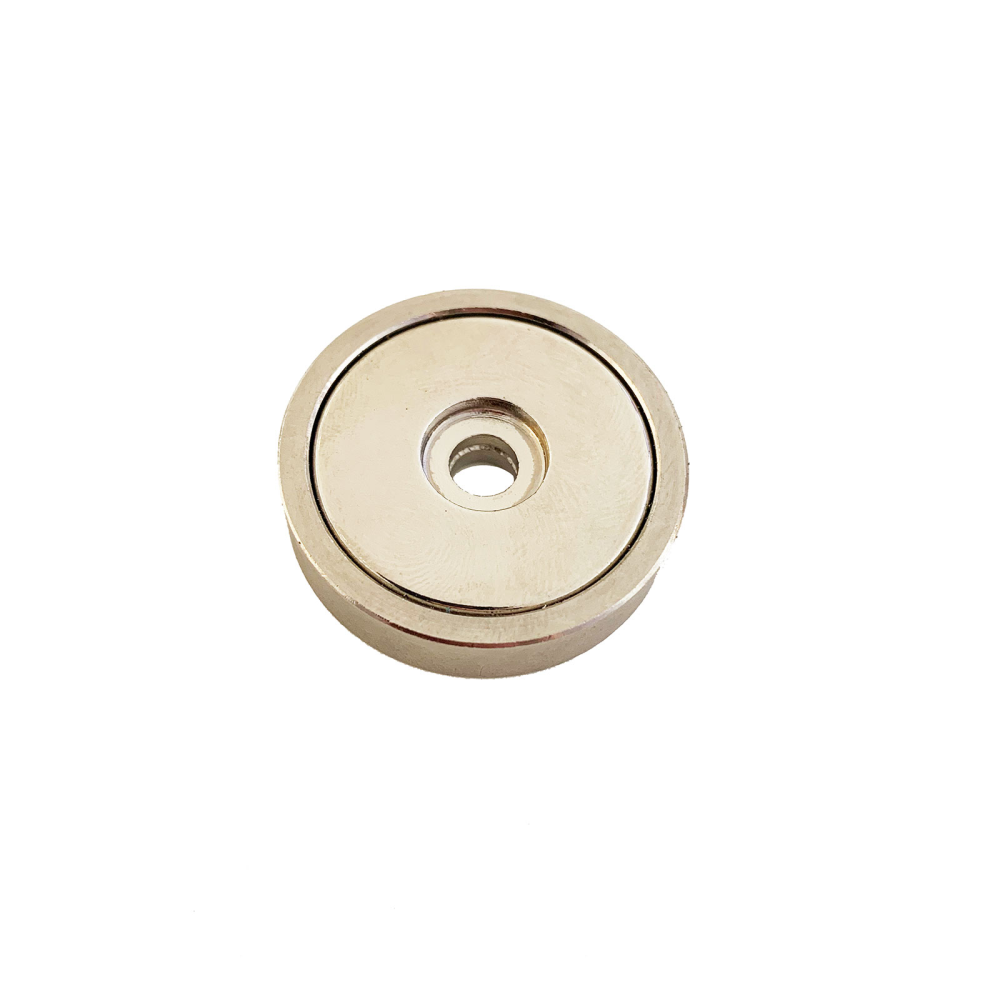

Pot magnet w/counterbore hole, Ø32 mm. - Neodymium
Details
Pot magnet w/counterbore hole, Ø32 mm. - Neodymium
Description
Description
Pot magnet Ø32 mm. with counterbore hole for screws with a normal round screw head (you cannot use countersunk screws with this magnet type).
Diameter: 3.2 cm.
Height: 0.8 cm.
Screw hole: ø 5.5 mm. (M5)
Total hole size: 9 mm.
Strength: approx. 23 kg.
This pot magnet is very strong but differs from our other pot magnets of the "submerged" type, as this magnet is made for flat screw head. It is often used to pop rivet firmly with blind rivets on e.g. shelf holders. But it is also brilliant for making hand sanitizer dispensers magnetic, as you can screw it onto the back of the dispenser and thus make it both magnetic and movable (e.g. for container use).
The difference between a counterbore and a countersunk pot magnet is that the screw goes further into the hole on a counterbore pot magnet, as there is room for a larger screw head. It is important for the strength of a magnet that the surface is completely flat, and with a counterbore magnet with a large hole for the screw, you don't have to worry so much about this: the screw head is "hidden" in the counterbore. But at the same time, it makes the magnet weaker than a countersunk magnet with an inclined undercut, since the final magnetic surface is smaller on a counterbore magnet.
SPECIFICATIONS
Strength : approx. 23,000 g.
Magnetism: N38
Surface: nickel plated (Ni)
Thread: M5
Made with a strong neodymium magnet and a steel pot around it, which strengthens the magnetism.
We always measure the strength in direct pull on a thick, magnetic steel plate. The more space there is between the magnet and the magnetic surface, the weaker the magnetism will be.
If the magnet is to be used for a vertical pull downwards, you must multiply the need for carrying capacity by approx. 4. Feel free to contact us - and we will do the calculation for you.
NOTE! Intended for indoor use as the steel pot is not made of stainless steel.
We do not recommend using pot magnets for glass boards, as the steel pot can scratch the glass surface.
