90 Degree Angle 165 (MagSwitch)

Magswitch 90 Degree Angle 165 is a magnetic tool for you who welds. The magnetic tool has an angle of 90 degrees and can therefore ensure that you can weld things together at right angles. Because there are strong magnets on both sides.

So if delivering superior accuracy sounds like something you are interested in, then this is just the right tool for your everyday tasks.

Each magnet can carry up to 149 lbs when placed on thick steel (see specifications below).

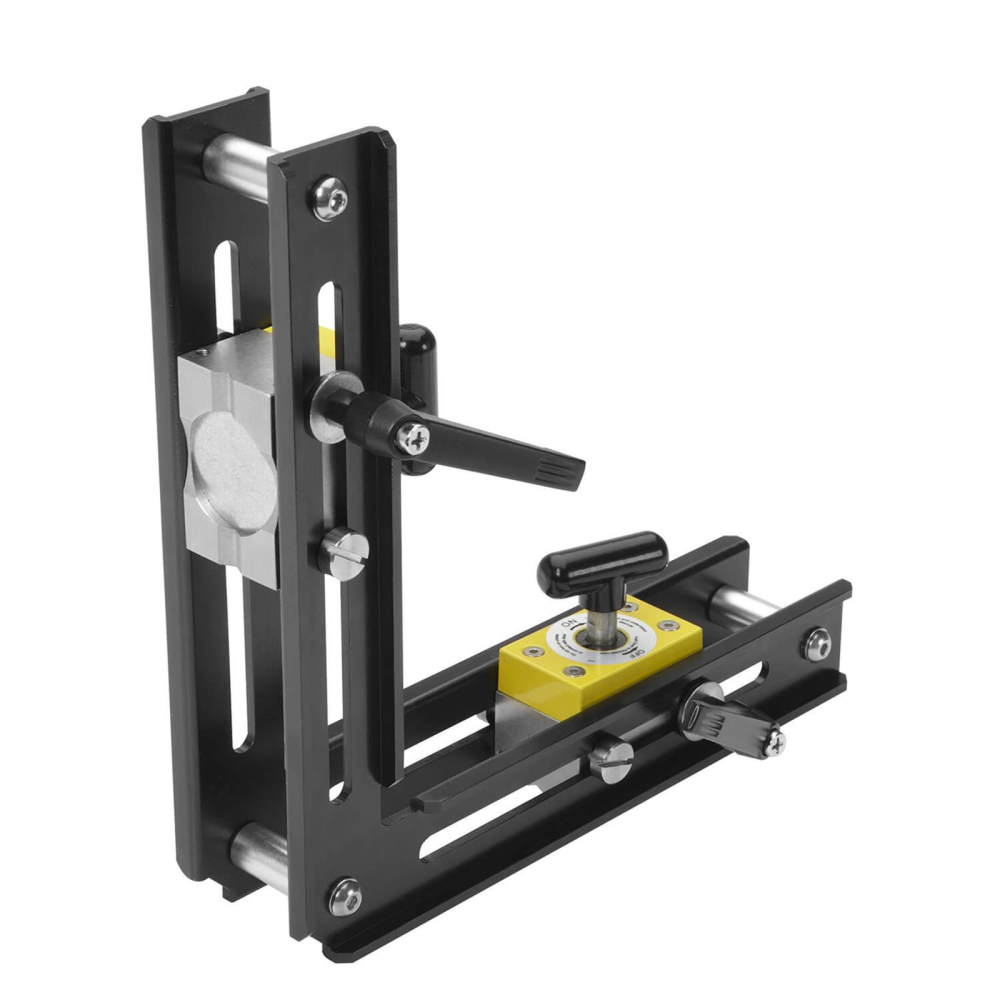

There are 2 MagSquares (the yellow magnets shown in photos) that can be pushed up or down on each axis. It gives you complete flexibility regarding the size of the metal objects to be held together.

The magnets are easily activated and deactivated on the black handles (for example, you can turn the magnets "on" and "off" as needed, and it is completely without power, as they work simply with distance).

Advantages of MagSwitch angle tool

• Magnetic field turns on and off mechanically (no electricity)
• Holds flat and round steel surfaces.
• Lightweight tool with incredible strength.
• Precision positioning has never been easier.
• MagSquares can be turned on each axis.

As if that wasn't enough, MagSwitches also work perfectly to avoid metal shavings. You can pick them up with the magnet when turned on and throw them out easily by switching the magnet to off again. In addition, the tool also remains clean and free of metal shavings, because they blow away from the tool when the magnets are switched off.

You will find data sheet for MagSwitch 90 degree angle 165 here.

Specifications
Model: 8100548
Maximum breaking strength: 121 lbs on 2'' steel
Maximum load capacity: 150 lbs (per magnet)
2:1 shear load: 18 lbs
Thickness for full magnet saturation*: 6.35 mm
Product weight: 0.8 kg.
Dimensions: 205 x 76, 8 x 205 mm. (8.1 x 3 x 8.1 inches)
Magnetic coverage area (footprint): 48 mm. x 31 mm.

*Thickness of the metal plate to achieve full saturation of the magnetic field so that it can achieve maximum carrying capacity.
