Door stopper set rubber magnet + metal plate (small)

You get a door stopper set that you have been waiting for, so you can easily keep the door open.

This door stopper set is especially suitable for a playhouse or a door indoors (standard dimensions). Screws are required for this solution, so if you need a different type of door holder, read our FAQ about a magnetic door stopper.

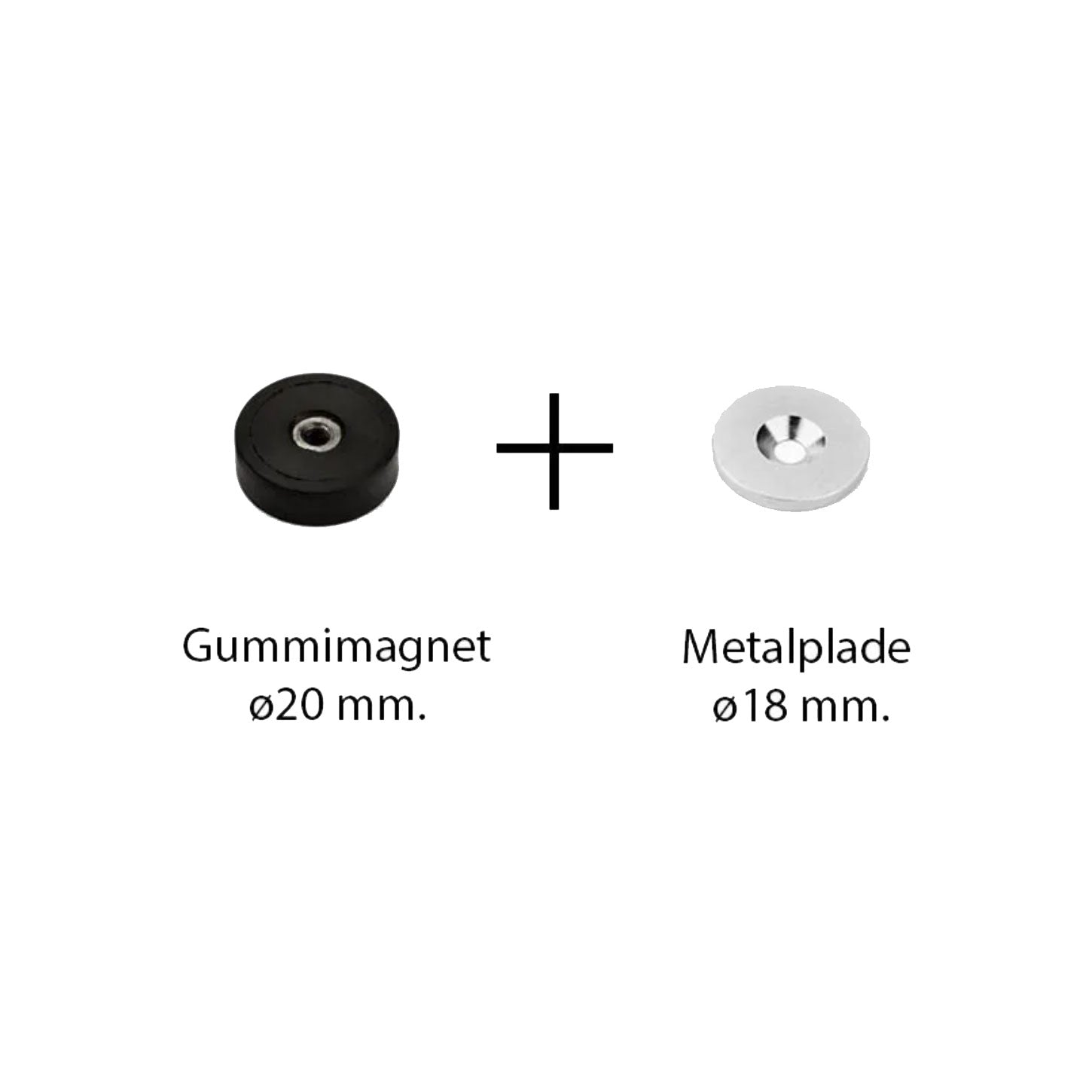

The door stopper package in small contains:

• 1 x rubber magnet with internal thread (ø20 mm.)
• 1 x recessed metal plate (ø18 mm.)

NB! screws are not included with the package.

The set can be used both indoors and outdoors. If you are going to use it outdoors, however, you must be aware that the steel thread in the magnet can rust over time, and the metal plate must be painted with a thin layer of varnish if it is to be used outdoors, so that it does not rust. The

Rubber magnet in the door stopper package is a neodymium pot magnet with a rubber coating and internal thread. The magnet fits an M4 screw (machine screw or bolt). The thread is continuous, so you can screw a screw all the way through the rubber coating on the other side if necessary.

SPECIFICATIONS OF THE MAGNET
Diameter: 2 cm.
Height: 0.6 cm.
Screw hole: M4
Load capacity: approx. . 3.2 kg.
Steel thread: Q235

If you want to use an alm. screw, we can recommend a countersunk M3 screw, as it goes through the thread fine but is not too big in the head, so it does not stick out over the magnet. An M4 general. screw cannot go all the way through and give you a flat surface, which creates distance to the metal plate and thus less magnetism.

It is best if there is direct contact between the rubber magnet and the metal plate. The further the rubber magnet comes from the metal plate, the more the bearing capacity weakens.

The supplied metal plate is round with a recessed hole, so you can screw it into the door. Used as a counterpart to the rubber magnet.

SPECIFICATIONS FOR METAL PLATE
Diameter: ø18 mm.
Height: 1.5 mm.
Sight hole: ø 5.5 mm.< /p>

You always save min. 10% on our assembly set compared to buying the parts separately.
